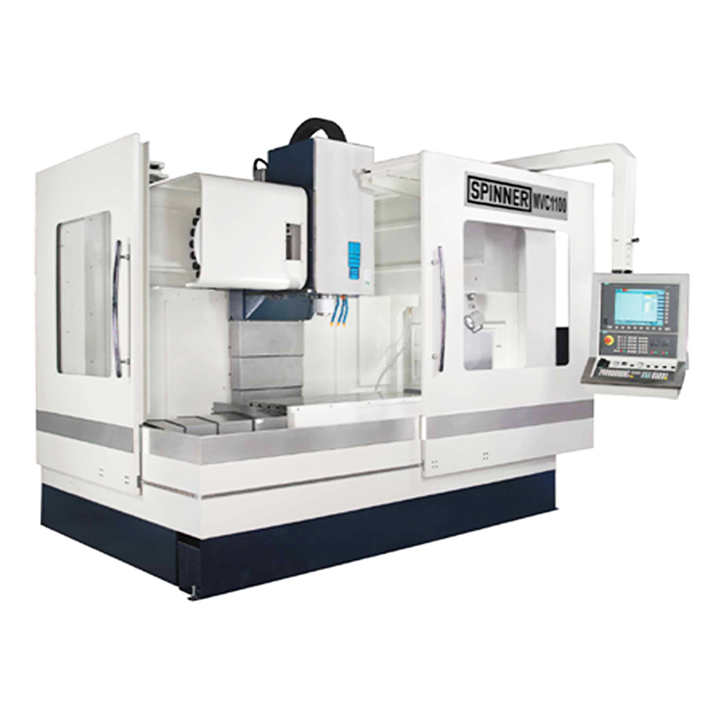

Lubricant-coolant separator
Built-in high speed spindle
Tool magazine capacity: 16 tools
Max. rapid feedrate: 30 m/min
Max. cutting feedrate: 20 m/min
Working table area: 1100mm x 600mm
X, Y & Z axis Travel: 1000mm x 600mm x 500mm
SIEMENS 840D/828D controller with High Speed Mill, NURBS interpolation function

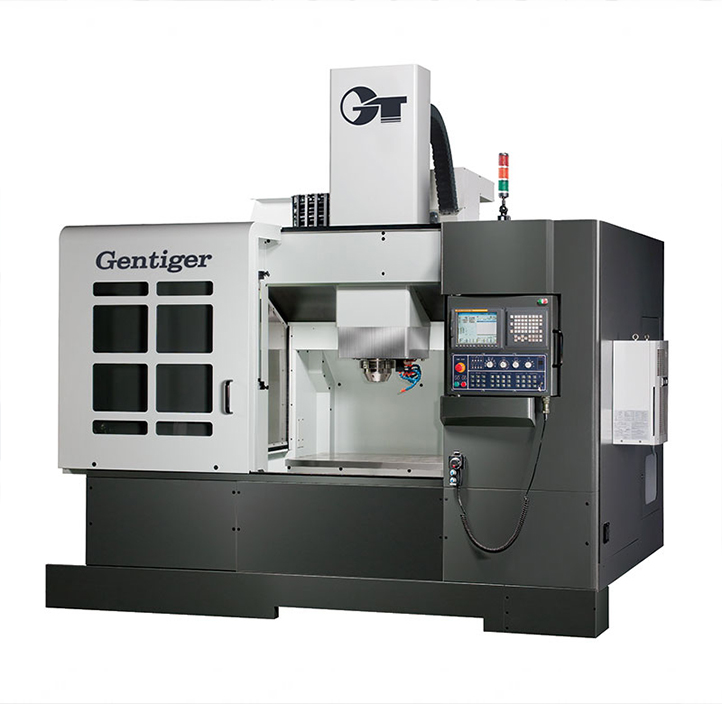

Travels X 1.100 mm Y 610 mm Z 610 mm
Rapid traverse : 36 m/min
Max. Rotational speed : 10.000 U/min
Tool holder, changer : SK40, 24
Table dimensions : 1.200 x 500 mm
Max. Table load : 1.000 kg
Height : 3.400 mm x 2.000 mm x 2.400 mm
Weight : 8.000 kg

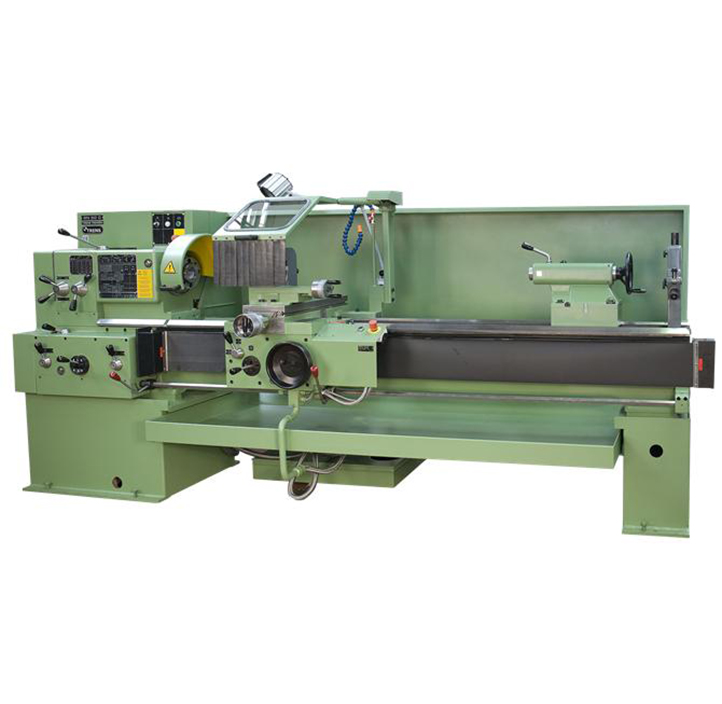

Maximum Turning Diameter: Ø 500 mm
Maximum Processing Length: 600 mm
Mirror Size: 10 ”
Number of teams: 12
Rod Capacity: Ø 75 mm
Spindle Bore Diameter: Ø 90 mm
Length: 2470 mm Width: 1830 mm
Height: 1700 mm Weight: 5800 kilos

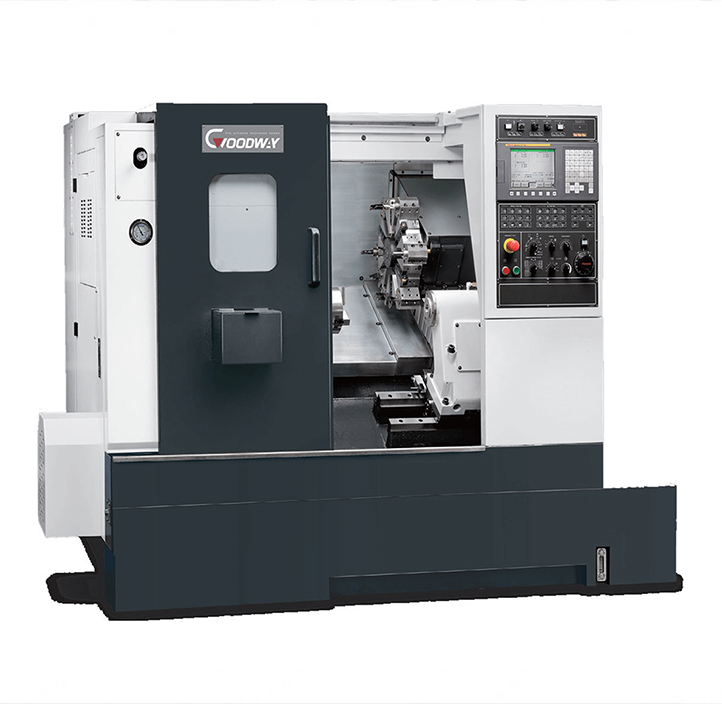

Max. Swing Diameter : Ø 500 mm
Max. Turning Diameter : Ø 360 / 280 mm
Max. Turning Length : 500 mm
Chuck Size : Ø 6" ( Big-bore ) / 8" ( Big-bore )
Bar Capacity : Ø 51 / 65 mm
Spindle Nose : A2-5 / A2-6
Spindle Motor : 11 / 15 kW ( 15 / 20 HP ) ( cont. / 30 min. )
Turret : 12-St. / 10-St.
X / Z Axes Travel/Rapids : 210 / 520 mm, 30 m/min.
Max. Y-Axis Travel : 70 mm = ± 35 mm

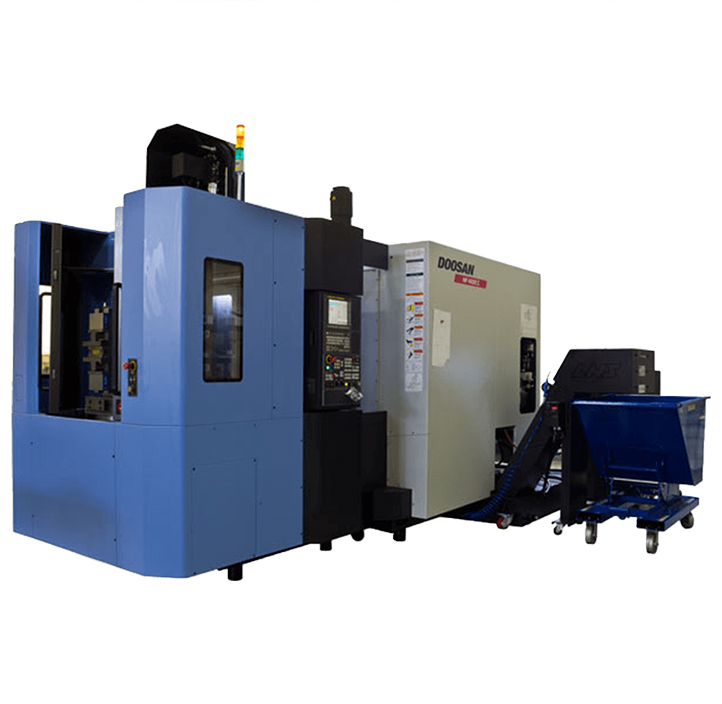

Axis X,Y,Z : 599.4 mm, 558.8 mm, 599.4 mm
CNC Fanuc 18iMB
Table length, width : 401.3 mm, 401.3 mm
Max. part weight : 399.3 kg
Number of tool pockets : 60
Spindle taper : 40
Max. spindle speed : 14000 rpm
Spindle motor power : 22 kW
Length x width x height 3530.6 × 3556.0 × 2870.2
Weight : 14373.9 kg

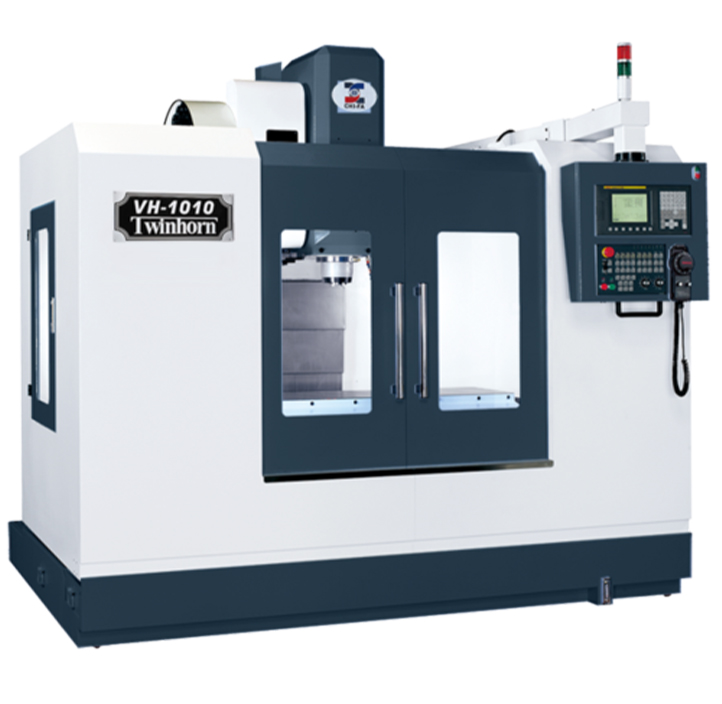

X : 848.36 mm
Y : 500.38 mm
Z : 520.7 mm
Power : 11.2 kW
RPM : 8,000 RPM
#ATC : 24
Table-W : 1,000.8 mm
Table-L : 449.58 mm
Control : CNC (Fanuc 0i-MB)
